Brand Name : HOUSEELE
Model Number : EKM2035
Place of Origin : CHIAN
MOQ : 300PCS
Price : Negotiable
Payment Terms : Western Union, MoneyGram, T/T
Supply Ability : 10000pcs per month
Delivery Time : according to quantity
Packaging Details : Standed export carton
Product name : Street lighting pole Connection Box
Model : EKM2035
Color : Gray
Protection Level : IP43
Material : Plastic
Service : OEM,ODM
Street lighting pole Connection Box EKM2035
Product Description:
This connection box is intended to be installed in lighting columns at the connection between looped-through feeder cables and the luminaire components timers, residual current devices or the like can be integrated on DIN rails.
Technical Date:
Body Material | Impact resistant thermoplastic |
Corrosion performance | All metal parts corrosion protected |
Cover | Transparent fuse cover |
Ingress protection | IP43 |
Class of Protection | II |
Electrial performance | Input cable section: 16-35mm² |
Output cable section: 16-35mm² | |
Branch feeder cable section: 2.5mm² | |
Feeder cable current(A): 32A |
Selection Cirteria:
For application inside of lighting columns | Pole diameter≥ 110mm |
Door size ≥ 90x300mm | |
4 sliding terminals for | 2 cables 4-50 mm² |
3 cables 4-35 mm² | |
Optional fuses D II (E27) | up to 25A |
Optional for standard installation devices on DIN-rail attachable up to 3 TE width(3x18mm),max height of devices 75mm. |
Drawing:

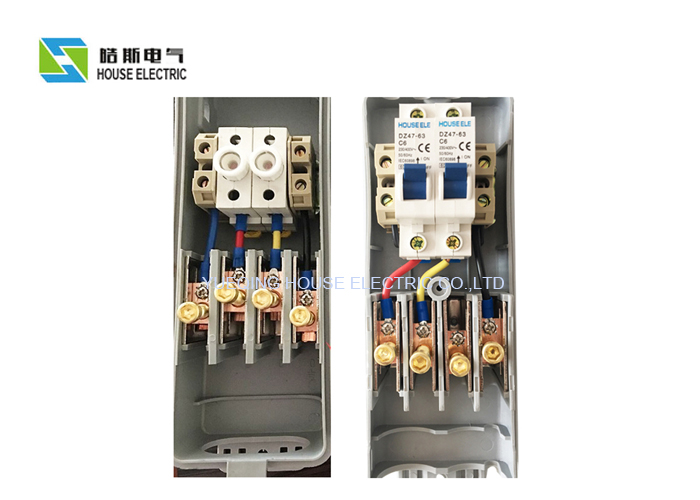

Product Images:
![]() |
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box Images |
