Eagle signal percentage timer for electrical Center pivot irrigation system
The HQ4E series 48 percentage Timer is an accurate,econimical,enclosed percentage timer designed for use in application where a repetitive ON time for a fixed cycle needs to be variable.
The HQ4E series 48 percentage Timer is ideally suited for:
Irrigation controls
Chemical feeding
Programed temperature controls
Electric heaters,ovens
Motor controls
Lubrication systems
The HQ4E series percentage Timer is a panel mounted unit with exposed dial.The heavy duty front dial plate has 4 mounting studs for simple and secure mounting studs for simple and secure mounting to panels up to 1/4 inch thick.The load relays are enclosed for environmental protection.
Electric connections are made to captive screw terminals on the rear of the unit.
Operation:
Percentage settings are made with a knob and a dial on the front of the unit.Settings may be made or changed with the timer operating.At 100 percent setting,terminals 2 and 3 are closed continuously.At zero percent setting,terminals 2 and 3 are open continuously.
Timer Rangs:
| SYM | DIAL RANGE | SYM | DIAL RANGE |
| 01 | 15 Sec | 07 | 10 Min |
| 02 | 30 Sec | 08 | 15 Min |
| 03 | 60 Sec | 09 | 30 Min |
| 04 | 120 Sec | 10 | 60 Min |
| 05 | 4 Min | 11 | 120 Min |
| 06 | 5 Min | | |
Votage/Frequency:
24VDC(+10,-20%)
120VAC(+10,-15%)50/60HZ
240VAC(+10,-15%)50/60HZ
Contact Rating:
| INPUT | CONTAC RATING |
| 24VDC | 10A RESISTIVE INDUCTIVE@120VAC,1/2HP@120/240VAC |
| 120VAC | 10A RESISTIVE INDUCTIVE@120VAC,1/6HP@120VAC |
| 240VAC | 5A RESISTIVE INDUCTIVE@240VAC,1/2HP@/240VAC |
Setability:
±1% of total time cycle
Operating temperature:
-10 to 140 Deg.F(-23 to 60 Deg.C)
Power Consumption:
1.2Watts
Laboratory Testing:
U.L.Recognition E-61735
C.U.L Recognition E-61735

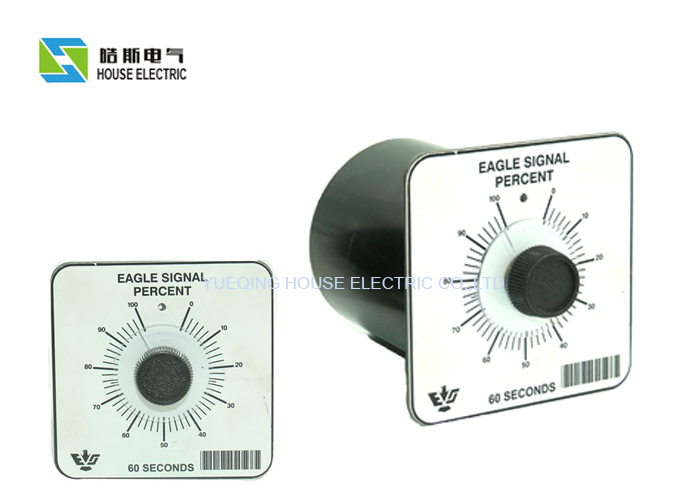

Product Images:
