Black Irrigation Signal Repeat Cycle Timer 1.2 Watt Power Consumption

Center pivots main control panel signal percentage timer

The LBT23Q series CA10 percentage Timer is an accurate,econimical,enclosed percentage timer designed for use in application where a repetitive ON time for a fixed cycle needs to be variable.

The LBT23Q series CA10 percentage Timer is ideally suited for:

Irrigation controls

Chemical feeding

Programed temperature controls

Electric heaters,ovens

Motor controls

Lubrication systems

The LBT23Q series CA10 percentage Timer is a panel mounted unit with exposed dial.The heavy duty front dial plate has 4 mounting studs for simple and secure mounting studs for simple and secure mounting to panels up to 6.0 inch thick.The load relays are enclosed for environmental protection.

Electric connections are made to captive screw terminals on the rear of the unit.

Operation:

Percentage settings are made with a knob and a dial on the front of the unit.Settings may be made or changed with the timer operating.At 100 percent setting,terminals 3 and 4 are closed continuously.At zero percent setting,terminals 3 and 4 are open continuously.

Dialrange:

15sec,30sec,60sec

120ses,4min,5min

10min,15min,30min

60min,120min

Votage/Frequency:

24VDC(+10,-20%)

120VAC(+10,-15%)50/60HZ

240VAC(+10,-15%)50/60HZ

Setability:

±1% of total time cycle

Operating temperature:

-10 to 140 Deg.F(-23 to 60 Deg.C)

Power Consumption:

1.2Watts

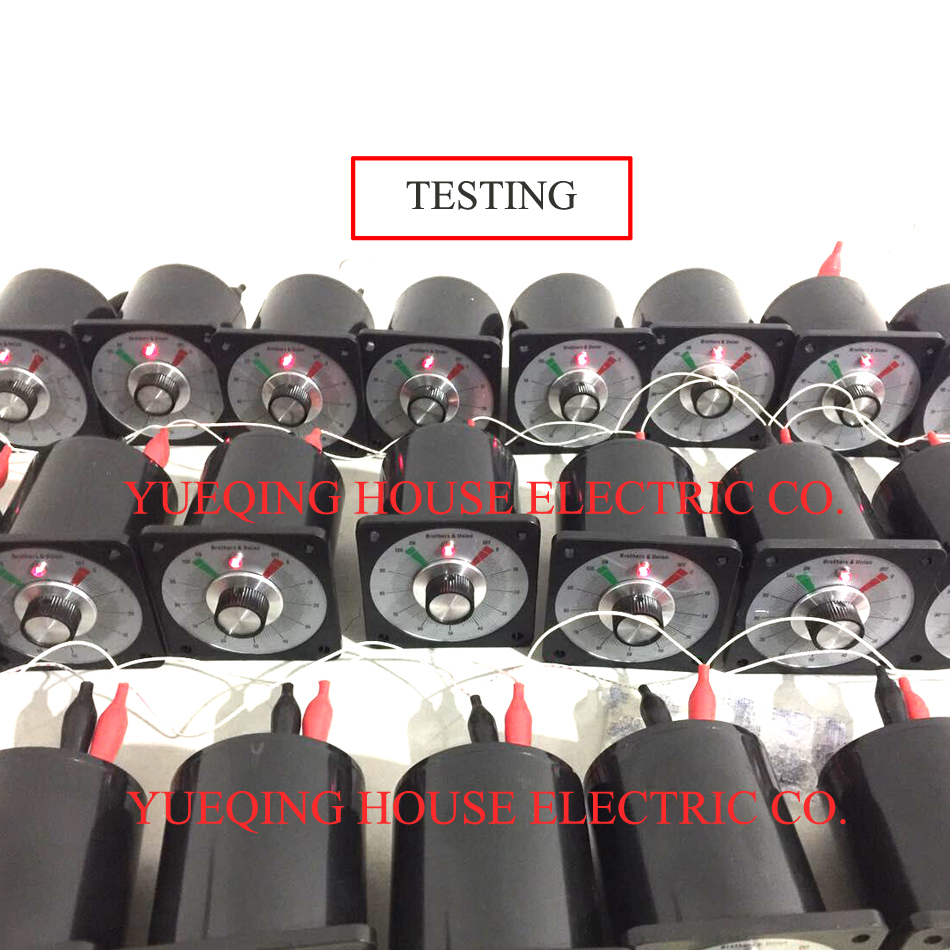

Product Images:
